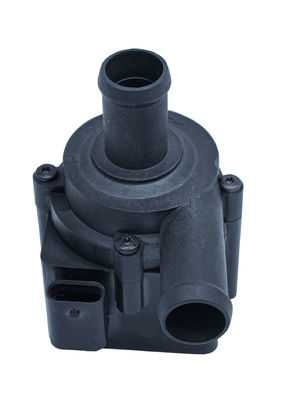

12V Car Water Pump Auxiliary Water Pump For Volkswagen Audi OE:06H121601N, 06H121601P,06D121601

Good feedback Auxiliary water pump For Volkswagen Audi OEM

Description:

Product features:
1. Product weight: 0.98KG
2. Temperature tolerance range:
1) Medium temperature: -40℃~+120℃
2) Ambient temperature: -40℃~+120℃

The basic performance of the product:
1. Working voltage range:
1) DC18~32V/ Rated voltage: DC24V
2) DC9~20V/ Rated voltage: DC12V
2. Traffic:
1600L/h@0.7bar /2100L/h@0.5bar (Medium: 50% glycol solution)
3. Pump resistance:
Under the forward flow direction of 3000L/h, the pressure loss of the pump is less than 0.5bar

Specification:

More information:

Details :

Product features:
1. Product weight: 0.98KG
2. Temperature tolerance range:
1) Medium temperature: -40℃~+120℃
2) Ambient temperature: -40℃~+120℃
The basic performance of the product:
1. Working voltage range:
1) DC18~32V/ Rated voltage: DC24V
2) DC9~20V/ Rated voltage: DC12V
2. Traffic:
1600L/h@0.7bar /2100L/h@0.5bar (Medium: 50% glycol solution)
3. Pump resistance:
Under the forward flow direction of 3000L/h, the pressure loss of the pump is less than 0.5bar
4. Noise:
The microphone 50 cm away from the water pump, the noise value less than or equal to 60 dba
5. Structural vibration:
The maximum vibration speed is less than or equal to 2.0mm/s
Product features:
1. Select the speed control mode
1) LIN bus mode, can meet the ISO LIN2.5 standard
2) PWM speed regulation
3) ON/OFF switch
2. Fault signal feedback
3. Blocked rotation protection
1) Pump rotor stuck protection
Reliability:
1. Air tightness: pump gas to 500±100kpa, pressure loss rate is less than 0.3kpa/min
2. Solvent corrosion resistance, in line with IEC61000-4-2/IEC61000-4-3 standard
3. Comply with EMC electromagnetic compatibility, no electromagnetic interference.
Introduction of PWM speed regulation of automotive electronic pump
PWM or analog signal VR (0-5V) speed control wiring method:
PWM speed control: suitable for MCU control, by detecting the pulse width of PWM signal to achieve the product speed control function, the PWM frequency is required within 2K. Advantages Speed control stable point, not affected by current and peripheral components;
PWM(50-800HZ signal amplitude is 5v) or analog signal (0-5V) speed regulation only need to connect the yellow line in the speed regulation interface to the speed regulation signal generation port of the external control system (PWM or 0-5V), connect the black line to the system ground wire, and hang the red line.
